Belite Aluminum Ultralight Aircraft Cabin Construction, #2

Please note: James' blog has moved to a Wordpress site. To access it, please visit All posts have been transferred to the new site, and all new posts will only be accessible via Wordpress. Thank you for your interest!

This is the second section on building an aluminum cabin for a Belite ultralight aircraft.  We're well on our way to finishing an awesome cabin for a single place airplane.  When completed, this cabin will weigh about 22 1/2 pounds and will match the look of other experimental (and factory) airplanes costing much, much more.

The first section in this series is HERE.

All caveats and warnings from that section apply in this section as well.  Remember, under federal law, you are personally responsible for ensuring the safety of your ultralight aircraft every time you fly, so do a good job.

Start by cutting two lengths of structural aluminum.  Each piece looks like this:

Short length of angle aluminum.
And each piece fits on the left or right side of the front cabin cross box assembly, as seen in this photo:

Short length drilled and clecoed in place.
Note that a long clamp is being used to pull both sides of the cabin snugly together.

Front Cabin Cross Box with both skins clecoed in.
Now it's time to clamp in the bottom gusset.

Bottom gusset clamped in place.
Bottom Gusset gets a few rivets.  (Cabin is on side.)
Be judicious in the use of rivets on the bottom gusset.  In the above photo, there are a couple of rivets placed (mistakenly) which were immediately drilled out in order to allow the floor pans to slip into place.  However, the objective is to get all of the bottom rivets in, so that the cabin assembly can set on the bottom and moved around without dragging the bottom tips of all of the clecos.

Floor pans as received and after bends.
Your pair of floor pans need to be bent into shape, as shown above.  The pre-cut relief slots make this easy to line up and do. Also, if you have shorter legs, you may wish to drill out and reset the position of the rudder pedal and brake bearing holes.  In general, the position of the holes should work well as set for pilots between 5' 8" and 6' 4" in height.  Shorter pilots may use a back cushion on their back seat, and anyone with truly short legs should consider resetting the pedal location.

Floor pans clecoed in place.
Make sure your floor pans are put in square to the cabin assembly, as one end does not have matching drill holes.  Also note that doubler gussets have been clecoed in on each forward corner.

Bottom front section riveting.
Above is a photo that shows what it looks like after riveting the bottom front section.  Note that many holes have been drilled out for 3/16" rivets.  Also note:  look through the remainder of the assembly instructions, as a metal sheet will be slipped under one side of the floor pan.  The metal sheet is the bottom of the mid cabin storage cabins, and its front edge has to slip under one of the floor pans and also under one of the front landing gear gussets.

Front Landing Gear Gusset.
To be continued.

Monday, December 10, 2012

Belite Aluminum Ultralight Aircraft Cabin Construction, #1

Please note: James' blog has moved to a Wordpress site. To access it, please visit All posts have been transferred to the new site, and all new posts will only be accessible via Wordpress. Thank you for your interest!


Part 2 may be found HERE (click).
Part 3 may be found HERE (click).

Let's dig into building an aluminum cabin for a Belite Ultralight Airplane.

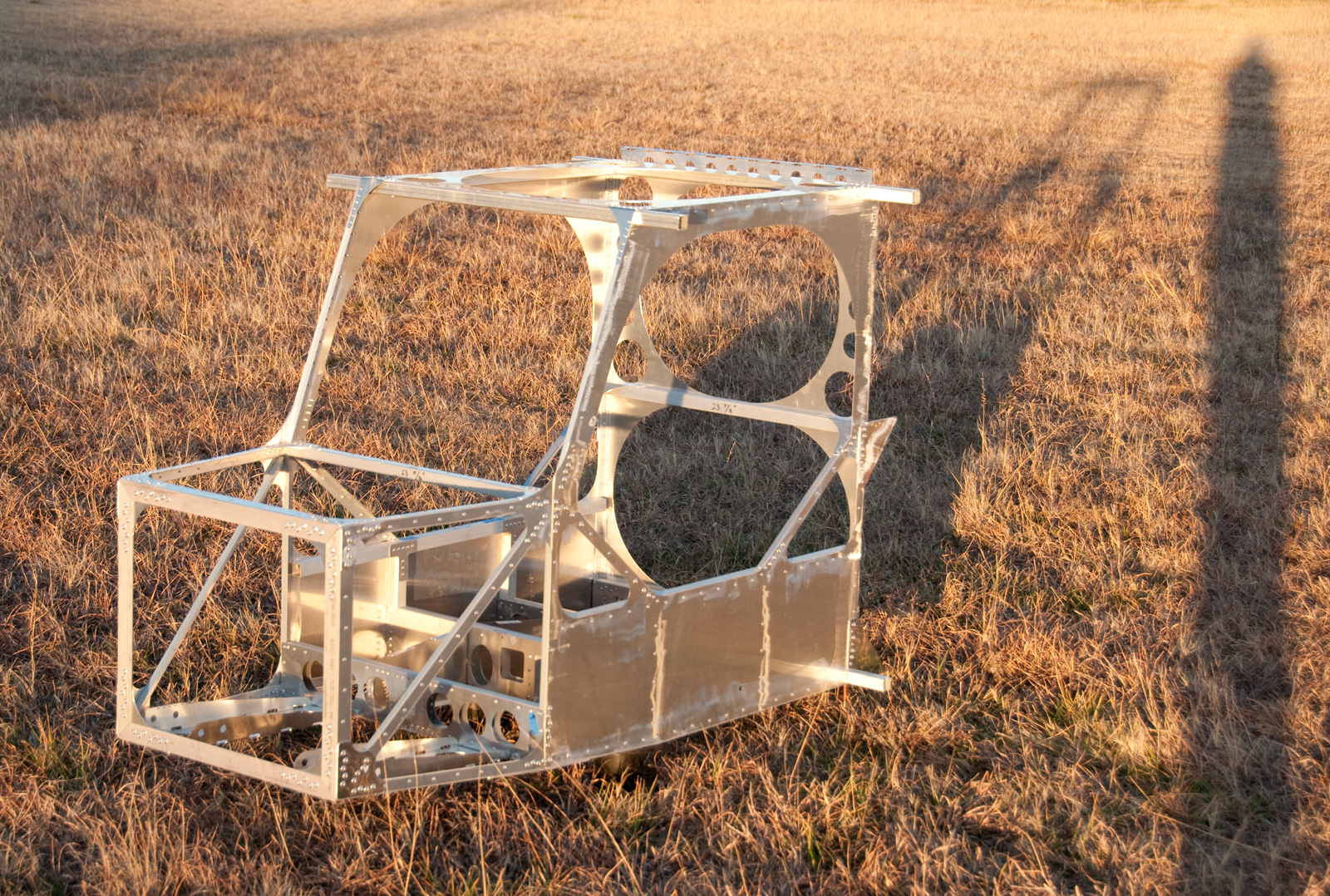

Sometimes, it's good to have a vision of where we are trying to get, and in our case, it is represented by the following photo:

Belite Aluminum Cabin for ultralight airplane

Here's the ground rules:

a. 99.97% of all holes are pre-drilled.  There are a few you have to drill, for reasons which are usually obvious.  You'll have to drill into the matching longerons and tubings, and this is very easy because it matches to the holes in the gussets.
b.  Every piece of aluminum gusset is pre-cut and pre-drilled on our CNC machinery.  The accuracy is amazing.
c.  You are responsible for cutting and fitting aluminum longerons (all metal square tubing and angle material) to length.  This is easily done on a bandsaw or a tablesaw, but if you use a tablesaw, you must use a carbide blade.  Wear eye protection.
d.  Make sure you clean and deburr all components.  I will never bring this up again in this document, but you will see plenty of evidence of deburring in the photos.
e.  A few clecos go a long ways.  I also like to use cleco clamps.  We buy them for $4.95 / dozen in Wichita, and you can do the entire airplane with a hundred or so.  Two hundred would be a little better.
f.  We include some 1/8" rivets in the kit to get you going.  We don't include 3/16" rivets.  Our rivets are aluminum / steel commercial quality rivets.  You may wish to upgrade to aircraft grade rivets.  In certain locations, you may wish to buck solid rivets.  Always make sure you use the appropriate length of rivet.
g.  All holes in the pre-drilled gussets are 1/8" in diameter, but many of the holes will be drilled out for use with 3/16" rivets.  Examine the construction photos for advice.
h.  Don't get ahead of the pictures.  Don't drill out if it's not drilled out in the photo; don't rivet if it's not riveted in the photos.   Having said this, there are still a few spots where you'll have to drill out rivets after they've been pulled.
i.  Make sure you get everything square.  There are not many places to screw up, but a good example is the second step, where the front left and right parts are clamped on.  Make sure they are exactly matched to the front of the firewall frame.  Check squareness.  Build on a dead flat table.  Use sharp drills.  Go slowly.
j.  Read and understand all of these instructions before doing anything.

1.  Firewall Frame.  Cut the Firewall Frame from 7075T6 angle aluminum, with 45degree mitred corners.  Temporarily Cleco with corner gussets (also 7075T6 aluminum). Drill out and assemble using 3/16 rivets.

Firewall Frame for Belite Ultralight Aircraft

2.  Clamp Front Left and Right Master Gusset.
Clamp on Front Left and Right Master Gusset.

3.  Clamp on Left and Right Longerons.  These are approximate 60" in length.  They are 2024T3 aluminum, with dimensions of 0.875 x 0.500 x 0.063".  Other than the firewall, this is the only angle aluminum used in our cabin, and we will call it "structural angle" hereafter.

Clamp on Left and Right Longerons.
They are butt jointed on the inside, as shown in the photo below.
Butt joint of Longeron.
3.  Cut two pieces of structural angle to 16.25" in length.  Clamp and cleco in place.

Two pieces of structural aluminum, cut to 16.25" in length
16.25" structural angle clamped and clecoed in place.
4.  Clamp on Front Top and Bottom Master Gussets; also vertical longerons.

Front Top and Bottom Master Gussets.  Bottom is slightly longer as seen in above photo.
The Vertical Longerons are 40" in length.  They are cut from structural aluminum.
Vertical Longerons are 40" in length.
Front Top Master Gusset clamped in place.  Your gusset may be pre-notched.
Vertical Longeron clamped in place.
Butt joint on bottom of Vertical Longeron.
Vertical Longeron clamped in place.
Use a Sharpie and make a mark on each Vertical Longeron, through the hole in the photo below:

Marking dot thru hole onto Vertical Longeron.
You must make a V cut in each Vertical Longeron at the marked location.  The V cut must be larger than necessary, as it is impossible to unbend and rebend it, because the metal will fail in fatigue in two bends.

(Multiple overlapping gussets carry all flight loads at this spot, but its nice to have the Vertical Longeron holding together).
Make a V cut in each Vertical Longeron at marked location.
Then reclamp the Vertical Longerons in place.

5.  Cut and fit Diagonal Longerons from Structural Angle.

You need to cut and fit two Diagonal Longerons from Structural Angle.
Diagonal Longerons cut from Structural Angle.
Diagonal Longerons being fitted to Front Left and Right Master Gussets.
Butt joint on Diagonal Longerons.
6.  Cleco in doubler gussets on Front Top Master Gusset.

The doubler gusset is inserted into the cleco assembly at each front top corner.

Doubler Gusset added to Front Top Master Gusset.
7.  Clamp on Front Bottom Master Gusset.

Front Bottom Master Gusset being clamped in place.
Marking position of notch in Left and Right Longerons.
You'll need to make a notch in the Left and Right Longerons at the marked spot, which is displaced 1/8" from the edge of the Vertical Longeron.
Notch made in Left and RIght Longerons, displaced 1/8" from alignment mark.
After the notch is made on each longeron, it's an easy matter to pull in the two longerons. using clamps or weights:
Left and Right Longerons pulled in
A piece of 3/4" thin wall square tubing is cut to 23 3/4"+.  After trimming to the correct length, it is clamped to the Front Top Master Gusset.

Clamping in square tubing
8.  Build up the First Cross Box.

It's built from two gussets (First Cross Box Front and Rear), along with dual matching lengths of 3/4" thinwall aluminum tubing.

First Cross Box being built.
First Cross Box, view from front.
That ends our first installment on how to build a Belite Aluminum Cabin.  We'll pick it up again in a few days.

Sunday, December 9, 2012

Well Coordinated Flight in UltraCub with 4 Stroke

Please note: James' blog has moved to a Wordpress site. To access it, please visit All posts have been transferred to the new site, and all new posts will only be accessible via Wordpress. Thank you for your interest!

I'm able to fly the 4 stroke UltraCub with good turn / rudder coordination, without using the rudder pedals.  This fact is shown in the following video on youtube:


What this means is the Belite's aircraft continue to be more like flying a Cessna 172.

The UltraCub has enhanced span and enhanced flaperons.

And here's a photo of a cabin from an UltraCub, nearly complete, ready to cover:

UltraCub Cabin under construction
