Wednesday, February 27, 2013

Floats, Tricycle Gear, Turtledeck, Builder tips

Please note: James' blog has moved to a Wordpress site. To access it, please visit All posts have been transferred to the new site, and all new posts will only be accessible via Wordpress. Thank you for your interest!

Something for everyone...

One sneek picture of an amphibious float is somewhere below...

Pics of the Sky Blue plane with a turtledeck on it, builder tips for those builders seeking help, photos of a tricycle gear fuselage under construction, photos of a primed fuselage, carbon fiber spars, all for the ultralight Belite Aircraft.

By the way, my heart goes out to designers of amphibious floats.  Hardest design project, ever.

Carbon fiber spar with jury strut fitting.  Wrapped with carbon fiber rope and epoxied.

Sky Blue Ultralight Belite with turtledeck.

Another view of the sky blue ultralight Belite Aircraft.

Blurry picture of lift strut fitting, with carbon fiber rope and epoxy.

Messy job on the glue, but aluminum doubler (2.75" OD) over carbon fiber spar.  Tripler on inside root.

New design Belite door.  Coolest ultralight aircraft door, ever.

CNC cut frame on inside of door frame.  Note two pins for locking door closed.

We added corner pocket windows to this Belite.  Edge of  polycarbonate door panel is visible.

This side of the plane has a polycarbonate window installed.  Easily removable 'cuz we used Nutserts.

Swing the door up.  Someone really ought to add a gas lift strut.

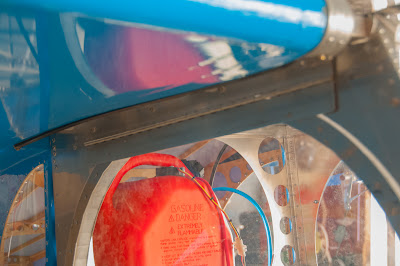

Door hinge installed on top of door.

Picture of amphibious float.  How'd this photo slip in here?

Really bad photo showing one way to overlap fit trailing edge material together.

Another way to fit trailing edge together.  Works with wood ribs if you use a left and right gusset.

Tricycle gear airplane under construction.

Finishing tail of tricycle gear airplane.

Underside of rear deck, showing structure.

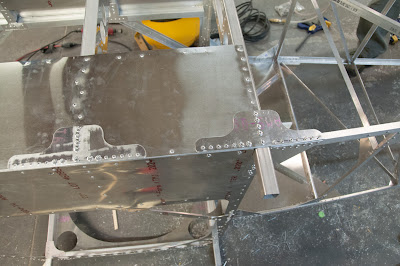

Gusset detail on tricycle gear airplane.

More gussets.

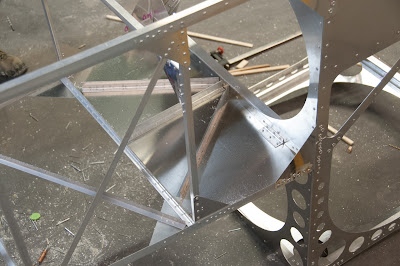

This gusset is doubled, as gear hinge will be bolted here.

And here as well.  Doubled.

Another view of the bottom of the rear deck.

View of the front.  Nose gear not yet installed.

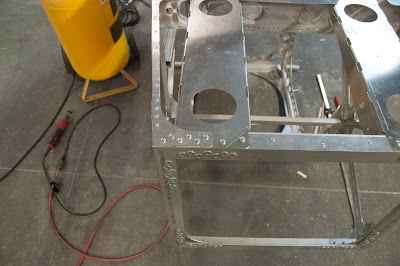

Detail of front of fuselage.

Detail of front of fuselage.

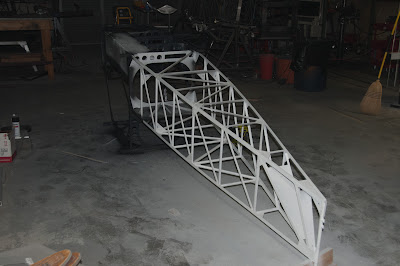

Some aluminum primer, some paint.  This bird nearly ready to cover.
